50-STATE EMISSIONS FE-E:

STANDARD PAINT -PAINT:

** PRICES SHOWN ARE THOSE DISTRIBUTED BY TOYOTA MOTORS SALES USA-THESE PRICES ARE NOT VALID IN THE STATES OF ALABAMA, GEORGIA, NORTH CAROLINA, SOUTH CAROLINA, ARKANSAS, FLORIDA, MISSISSIPPI, TEXAS, LOUISIANA AND OKLAHOMA ** **-WHO:

GRAPHITE, LEATHER TRIM LD13:

RED ROCK/BLACK, LEATHER TRIM LD21:

SAND BEIGE, LEATHER TRIM LD44:

GRAPHITE, LEATHER TRIM (REQ: OF Off-Road Pkg) LC13:

RED ROCK/BLACK, LEATHER TRIM (REQ: OF Off-Road Pkg) LC21:

SAND BEIGE, LEATHER TRIM (REQ: OF Off-Road Pkg) LC44:

TRD OFF-ROAD PKG -inc: 18" 5-spoke TRD off-road alloy wheels, P275/65R18 BF Goodrich OWL all terrain tires, off-road suspension, Bilstein shocks, fuel tank skid plate, TRD graphic OF:

MEMORY PKG -inc: 2-position driver seat memory, 2-position exterior mirror memory, 2-position steering wheel memory MO:

20" 5-SPOKE ALLOY WHEELS -inc: P275/55R20 tires (N/A w/OF Off-Road Pkg) AL:

RUNNING BOARDS KG-A:

PWR FOLDING HEATED TOW MIRRORS -inc: manually extendable, turn signals (N/A w/MO Memory Pkg) TM:

VOICE-ACTIVATED DVD NAVIGATION SYSTEM W/BACKUP MONITOR -inc: 7" high-resolution touch screen, JBL AM/FM stereo, 4-disc CD changer, MP3/WMA capability, (10) speakers w/subwoofer, integrated (3) month subscription SiriusXM satellite radio w/NavTraffic, Bluetooth capability, aux & USB audio inputs w/iPod connectivity NV:

SUPER WHITE 040:

SILVER SKY METALLIC 1D6:

MAGNETIC GRAY METALLIC 1G3:

BLACK 202:

RADIANT RED 3L5:

BARCELONA RED METALLIC 3R3:

PYRITE MICA 4T3:

SPRUCE MICA 6V4:

NAUTICAL BLUE METALLIC 8S6:

** VARIOUS ADDITIONAL POST PRODUCTION OPTIONS MAY BE AVAILABLE IN YOUR AREA ** **-PORT:

PREFERRED ACCESSORY PKG -inc: RS3200 plus security, remote engine start (REQ: OF Off Road Pkg) (N/A w/PN Alarm System or V2 VIP Glass Breakage Sensor) (PPO) C5:

CONVENIENCE PKG -inc: wheel locks, spare tire lock (PPO) C9:

PREFERRED ACCESSORY PKG -inc: all weather floor mats & door sill protector, first aid kit (N/A w/CF Carpet Floor Mats) (PPO) Z2:

TRD REAR SWAY BAR (PPO) HR:

FRONT SKID PLATE (PPO) S0:

TRD PERFORMANCE BRAKE KIT (REQ: AL 20" Alloy Wheels) (PPO) 8S-N:

SET OF (2) MINI TIE DOWNS W/HOOKS (PPO) RT-N:

TRD PERFORMANCE AIR FILTER (PPO) 3F:

TRD PERFORMANCE DUAL EXHAUST (PPO) 37:

STAINLESS STEEL EXHAUST TIP (PPO) E5:

20" MACHINED STAR 5-SPOKE ALLOY WHEELS (N/A w/OF TRD Off-Road Pkg) (PPO) WB:

TRD 17" FORGED OFF-ROAD WHEEL UPGRADE -inc: all-terrain tires (N/A w/WL Alloy Wheel Locks or OF TRD Off-Road Pkg) (PPO) L2-N:

ALLOY WHEEL LOCKS (PPO) WL-N:

SPARE TIRE LOCK (PPO) WI-N:

PAINT PROTECTION FILM (N/A w/HP Hood Protector) (PPO) 3P:

HOOD PROTECTOR (PPO) HP:

LOCKING BIKE FORK ATTACHMENT (PPO) BK:

CHROME TUBE STEPS (PPO) R3-N:

BED CARGO NET (N/A w/BT Color-Keyed Tonneau Cover) (PPO) GN:

BEDMAT (N/A w/LU or BL Bedliner) (PPO) CJ-N:

BEDLINER W/O DECK RAIL SYSTEM (N/A w/BT Color-Keyed Tonneau Cover, GN Bed Cargo Net, R9 or DS Deck Rail System) (PPO) LU:

BEDLINER W/DECK RAIL SYSTEM (PPO) BL:

CARGO DIVIDER (PPO) D2:

BED EXTENDER (PPO) 7T:

COLOR-KEYED TONNEAU COVER (N/A w/BK Locking Bike Fork Attachment, D2 Cargo Divider) (PPO) BT-N:

BLUETOOTH HANDS FREE SYSTEM (N/A w/EJ Stereo) (PPO) B3:

ALL WEATHER FLOOR MATS W/DOOR SILL PROTECTOR (PPO) CT-N:

4-PIECE CARPET FLOOR MATS (PPO) *PRICE TO FOLLOW* C4:

REMOTE ENGINE START (N/A w/BZ Work Truck Pkg or BY Work Truck Pkg w/Cruise Control) (PPO) *No Longer Factory Orderable, See Dealer for Current Availability* V4:

V.I.P. RS3200 PLUS SECURITY SYSTEM (N/A w/PN Anti-theft Alarm System, V2 VIP Glass Breakage Sensor, BZ Work Truck Pkg or BX Work Truck Pkg w/Cruise Control) (PPO) V5:

VIP GLASS BREAKAGE SENSOR (N/A w/V5 V.I.P. RS3200 Plus Security System or PT Platinum Pkg) (PPO) V2:

UNDER SEAT STORAGE (REQ: NV DVD Navigation System) (PPO) G7:

EMERGENCY ASSISTANCE KIT (PPO) 7R:

FIRST AID KIT (PPO) 3Z:

BRUSHED STAINLESS STEEL STEP BOARDS (PPO) R1:

BLACK TUBE STEPS (PPO) R2:

4-PIECE CARPET FLOOR MATS W/DOOR SILL PROTECTOR (PPO) CF:

- TBD -Frame Type:

26.4Fuel Tank Capacity, Approx (gal):

13.9Total Cooling System Capacity (qts):

1EPA Greenhouse Gas Score:

13.1Tons/yr of CO2 Emissions @ 15K mi/year:

14Fuel Economy Est-Combined (N/A):

13EPA Fuel Economy Est - City (MPG):

17EPA Fuel Economy Est - Hwy (MPG):

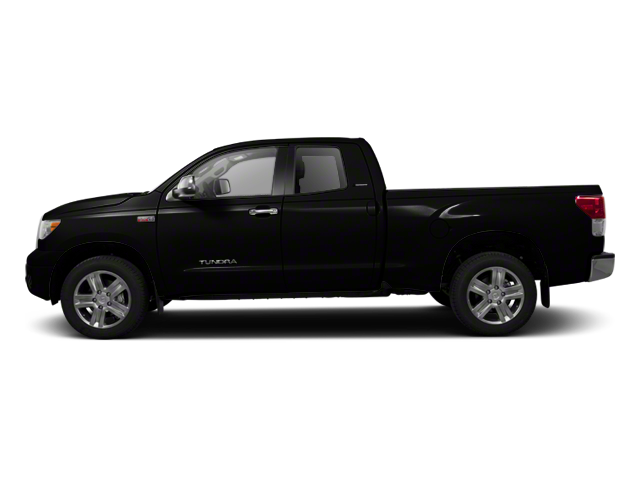

Toyota Tundra 4WD TruckVehicle Name:

Double CabBody Style:

- TBD -Body Code:

- TBD -Cold Cranking Amps @ 0° F (Primary):

- TBD -Cold Cranking Amps @ 0° F (2nd):

- TBD -Maximum Alternator Capacity (amps):

- TBD -Maximum Alternator Watts:

Pwr Rack & PinionSteering Type:

18.1Steering Ratio (:1), On Center:

3.7Steering Ratio (:1), At Lock:

44.0Turning Diameter - Curb to Curb (ft):

- TBD -Turning Diameter - Wall to Wall (ft):

Gas V8 5.7l/346Engine Type:

5.7L/346Displacement:

EFIFuel System:

381 @ 5600SAE Net Horsepower @ RPM:

401 @ 3600SAE Net Torque @ RPM:

PwrBrake Type:

4-WheelBrake ABS System:

YesDisc - Front (Yes or ):

YesDisc - Rear (Yes or ):

13.9 x - TBD -Front Brake Rotor Diam x Thickness (in):

13.6 x - TBD -Rear Brake Rotor Diam x Thickness (in):

18 x - TBD -Front Wheel Size (in):

18 x - TBD -Rear Wheel Size (in):

18 x - TBD -Spare Wheel Size (in):

AlloyFront Wheel Material:

AlloyRear Wheel Material:

- TBD -Spare Wheel Material:

4000Gross Axle Wt Rating - Front (lbs):

4150Gross Axle Wt Rating - Rear (lbs):

3220Curb Weight - Front (lbs):

2320Curb Weight - Rear (lbs):

7100Gross Vehicle Weight Rating Cap (lbs):

16000Gross Combined Wt Rating (lbs):

5000Dead Weight Hitch - Max Trailer Wt. (lbs):

500Dead Weight Hitch - Max Tongue Wt. (lbs):

10200Wt Distributing Hitch - Max Trailer Wt. (lbs):

1020Wt Distributing Hitch - Max Tongue Wt. (lbs):

10200Fifth Wheel Hitch - Max Trailer Wt. (lbs):

1020Fifth Wheel Hitch - Max Tongue Wt. (lbs):

78.7Cargo Box Length @ Floor (in):

- TBD -Cargo Box Width @ Top, Rear (in):

- TBD -Cargo Box Width @ Floor (in):

50.0Cargo Box Width @ Wheelhousings (in):

22.2Cargo Box (Area) Height (in):

66.4Tailgate Width (in):

- TBD -Cargo Volume (ft³):

- TBD -Ext'd Cab Cargo Volume (ft³):

P275/65R18Front Tire Size:

P275/65R18Rear Tire Size:

P255/70R18Spare Tire Size:

- TBD -Front Tire Capacity (lbs):

- TBD -Rear Tire Capacity (lbs):

- TBD -Spare Tire Capacity (lbs):

- TBD -Revolutions/Mile @ 45 mph - Front:

- TBD -Revolutions/Mile @ 45 mph - Rear:

- TBD -Revolutions/Mile @ 45 mph - Spare:

5Passenger Capacity:

40.2Front Head Room (in):

42.5Front Leg Room (in):

66.6Front Shoulder Room (in):

63.0Front Hip Room (in):

38.7Second Head Room (in):

34.7Second Leg Room (in):

65.7Second Shoulder Room (in):

62.6Second Hip Room (in):

Double wishboneSuspension Type - Front:

TrapezoidalSuspension Type - Rear:

- TBD -Axle Type - Front:

- TBD -Axle Type - Rear:

- TBD -Axle Capacity - Front (lbs):

- TBD -Axle Capacity - Rear (lbs):

4.30Axle Ratio (:1) - Front:

4.30Axle Ratio (:1) - Rear:

- TBD -Shock Absorber Diameter - Front (mm):

- TBD -Shock Absorber Diameter - Rear (mm):

1.4Stabilizer Bar Diameter - Front (in):

145.7Wheelbase (in):

228.7Length, Overall w/o rear bumper (in):

79.9Width, Max w/o mirrors (in):

76.2Height, Overall (in):

- TBD -Overhang, Front (in):

- TBD -Overhang, Rear w/o bumper (in):

- TBD -Front Bumper to Back of Cab (in):

- TBD -Cab to Axle (in):

- TBD -Cab to End of Frame (in):

- TBD -Ground to Top of Load Floor (in):

- TBD -Ground to Top of Frame (in):

- TBD -Frame Width, Rear (in):

- TBD -Ground Clearance, Front (in):

- TBD -Ground Clearance, Rear (in):

4WDDrivetrain:

6Trans Type:

AutomaticTrans Description Cont.:

3.33First Gear Ratio (:1):

1.96Second Gear Ratio (:1):

1.35Third Gear Ratio (:1):

1.00Fourth Gear Ratio (:1):

0.73Fifth Gear Ratio (:1):

0.59Sixth Gear Ratio (:1):

3.06Reverse Ratio (:1):

- TBD -Trans Power Take Off:

- TBD -Trans PTO Access:

- TBD -Transfer Case Model:

1.00Transfer Case Gear Ratio (:1), High:

2.62Transfer Case Gear Ratio (:1), Low:

- TBD -Transfer Case Power Take Off:
